EasyPack (/s) 8052F
A Professional Emulator Supports Various 8051 Kernels
Overview
Easypack/S 8052F is a professional emulator supporting Various 8051 kernels. It features high performance overlay memory, real-time hardware breakpoints, real-time trace buffer and new-generation source code debugger-CodeCruiser. Easypack/S 8052F supports 8031/32/51/52/54/58 microcontrollers.
System Feature
· Transmitted by Unique Serial and Parallel interfaces transmitting mode
· Supports low power processor (3V~ 5V)
· Real-time emulating, with the speed up to 40MHz
· Diagnostic function
· Software
approach for updating firmware
·
· Dimension:
High Performance Overlay Memory
· EasyPack
Serial support128K overlay memory (64K ROM + 64K RAM)
· EasyPack/S
Serial support 320K overlay memory (256K ROM + 64K RAM)
· EasyPack/U
Serial support 1088K overlay memory (1M ROM + 64K RAM)
· 128
Bytes mapping resolution
· Mapping
attributes:
Overlay
/ Overlay Read only: Memory of the Emulator (Internal)
Target
/ Target Read only: Memory of the target board (External)
Guard
(non-access)
Combination
Read/Write
Combination
Read only
Non-intrusive Program Execution Control
· Single
Step and step over in source or assembly levels
trace bit status.
Real-time Hardware Breakpoints
· Execution
breakpoints support all program space
· Two bus breakpoints (EV1, EV2) provide multiple setting capabilities for address, or data in
single, range and wildcard value
Real-time Trace Buffer
· Trace
buffer is 32K frames deep and 40 bits wide
· Include 16 bits address, 8 bits data, 3 bits status, 5 bits external trace points, and 8 bits port
status (port selectable)
· Support
Trace On / Off function
Complex Event/Trigger
· Up
to 2 levels of event trigger
· Each
level may be a single event or any logical construction of Ev1、Ev2
and Ev3
· Event
Counter provides a matched count triggering
synchronization
Execution Time Measurement
Execution
time can be measured by timer-inside (maximum time length is 36.4 hours with 1
millisecond timebase)

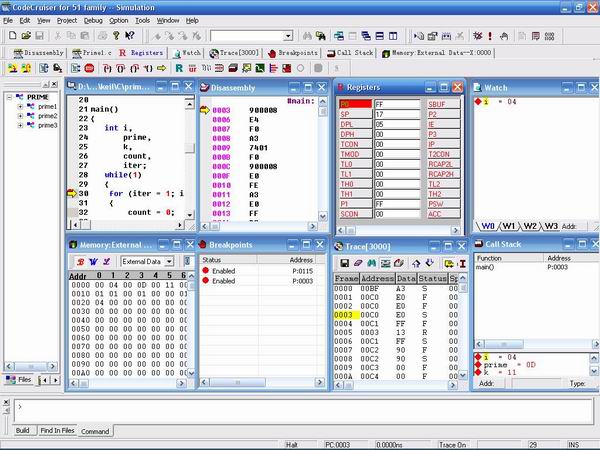

Source code debugger-CodeCruiser
CodeCruiser integrated development environment for C51 or compatible
MCU is running on the Operating System of Windows
for C51 source-level (assembly or C program) debugging.
CodeCruiser
features source debugging, breakpoints setting, single step, free run, Macro
single step, memory status check, memory edit, register check and edit, single
assembly, adding register to variable window, adding memory to variable windows,
editing variable, register or memory in variable window,
tracing, trigging and filtrating etc.
Source-level
debugging
·
Under
the Windows Environment
·
Support
many types of download
formats:
Intel
hex, OMF-51, UBROF, IEEE695
·
Tool
chains:
BSO/Tasking,
IAR, Keil/Franklin and 2500AD
· Supporting Part of Variables on Watch windows
·
CPU
register can be configured
·
One
program can be debugged using source, assembly and mixture mode.
·
Supporting
menu bar hint
·
Revise
the register content on Memory windows
·
Shortcut
menu using right key
·
Supporting
customized macro function
·
Supporting
C program on Watch
windows
Packing list
|
No. |
Accessories |
Qty |
|
1 |
Main Box |
1 PC |
|
2 |
ICE cable |
1 PC |
|
3 |
Null Target |
1 PC |
|
4 |
Print Cable |
1 PC |
|
5 |
RJ-45 Cable |
1 PC |
|
6 |
DB9, DB25 |
1 PC |
|
7 |
AC Power Cord |
1 PC |
|
8 |
Trace cable |
1 PC |
|
9 |
IDE CD |
1 PC |
|
10 |
IDE Manual |
1 PC |
|
11 |
Hardware Manual |
1 PC |
Third-Party product
Ordering information
|
Model |
Products Description
|
Brand |
Remark |
|
EasyPack/S8052F |
EasPack/S8052F In-Circuit Emulator |
MICETEK |
|
|
EasyPack/U8052F |
EasPack/U8052F In-Circuit Emulator |
MICETEK |
Optional |
|
KEIL |
Keil μVision2 |
KEIL |
Optional |
Related
EasyPack 8052F
Series can work with different ICE Cables and Firmware so as to support various
52 MCU.
Host PC:
·
EasyPack Series support 64K ROM
·
EasyPack/S Series support 256K ROM (4
Banks)
·
EasyPack/U Series support 1M ROM (16
Banks)
ICE Cable (ICB):
◆
Standard 51
Series... 12 clock / machine cycle
|
ICB type |
Emulation CPU |
MCU Supported |
Specifications |
|
8052F |
Philips 89C52 UBPN |
Standard 31/32/51/52 |
5V, DIP package MCU |
|
C501 |
Infineon C501 - 40 |
Standard 31/32/51/52 |
5V, DIP package MCU |
|
C501-3V |
Infineon C501 - 40 |
Standard 31/32/51/52 |
3.3V/5V, DIP package MCU |
|
RD+ |
Philips 8xC52RD+ |
Standard 31/32/51/52 + Int. RAM up to
1K |
3.3V/5V, DIP package MCU |
|
LV52 |
Philips 8xC52 SBPN |
Standard 31/32/51/52 |
3.3V/5V, DIP package MCU |
|
78C52 |
Winbond 78958 |
Standard 31/32/51/52 |
5V, DIP package MCU |
◆
Turbo 51
Series... 4 clock / machine cycle
|
ICB type |
Emulation CPU |
MCU Supported |
Specifications |
|
77LV58 |
Winbond W78958 |
Winbond 77 Series, Dallas Series |
3.3V/5V, PLCC package MCU |
|
77LV532 |
Winbond W789532 |
Winbond 77 Series, Dallas Series |
3.3V/5V, PLCC package MCU |
|
80C320 |
Dallas 80C320 |
Winbond 77 Series, Dallas Series |
5V, DIP package MCU |
◆
Special 51
Series
|
ICB type |
Emulation CPU |
MCU Supported |
Specifications |
|
C504 |
Infineon C504 |
Infineon C504 |
|
|
C505 |
Infineon C505CA |
Infineon C505 |
|
|
C508 |
Infineon C508 |
Infineon C508 |
|
|
1132 |
Philips ISP1132 |
Philips ISP1132 |
|
|
RD2 |
Philips 8xC52RD2 |
89C52RC2/RD2 |
6 clock / machine cycle |
|
8xC552 |
Philips 8xC552, 8xC562, 8xC554 |
Philips 8xC552, 8xC562, 8xC554 |
|
|
8xC592 |
Philips 8xC592 |
Philips 8xC592 |
|
|
752 |
Philips 83C752 |
Philips 83C752 |
|
|
550 |
Philips 8xC550 |
Philips 8xC550 |
|
|
739 |
Philips 8xC739 |
Philips 8xC739 |
|
|
X95 |
Philips X95 boundout CPU |
Philips 8xCX95 |
|
|
931 |
Intel 931AX, 931HX |
Intel 931AX, 931HX |
|
|
T3351x |
Trumpion T33510 |
Trumpion T33510... |
|
Accessories
·
DIP (40 pin) to PLCC (44 pin) Adapter
·
Conver 2051 -support 4051 / 2051 / 1051
