MPC8548E development platform
(MPC8548E processor card + Type-N/A carrier)

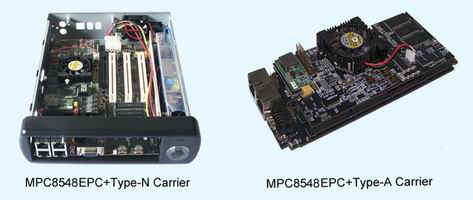

(Above is the pictures of MPC8548E reference board )
Overview
MICETEK provides a
quicker and
more convenient solution of development system for Freescale
PowerPC processor family, which consists of MPC85XXE processor
card and two kinds of carriers for different application. Combined with MPC8548E
processor card (MPC8548EPC), Type-N carrier can be used for network communication application, while
Type-A for ATCA/MicroTCA chassis. It reduces the
design cycle and saves the investment for the designer.
These PowerQUICC III processors (PQ38), the MPC8548E, MPC8547E, MPC8545E and MP8543E, are designed to deliver Gigahertz-plus communications processing performance and advanced features with the exceptional integration and high-speed connectivity required by enterprise networking, telecom transmission and switching, 3G wireless infrastructure, storage and high-end imaging markets. The processors are designed to offer clock speeds scaling up to 1.333 GHz with headroom for 1.5 GHz.
Advantages
of Using the MPC8548EPC
The MPC8548PC is
designed to contain the mandatory memories (DDR and flash) and system logics
(latch and buffer) only. However, it supports wide range of peripherals/
interfaces, for example 10/100/1000 Base-T Ethernet, UART, through the I/O
connectors and a corresponding carrier board. The following sections describe
the advantages of using the MPC8548PC.
1
Flexibility
2
Shortening of the design cycle
3
Reusability
4
Ease of Debug
5
Standardized reference
Solution 1: MPC8548E development platform (MPC8548E processor card + Type-N carrier)
Model: MT8548E-N
Features
·
CPU:
Freescale MPC8548E, with frequency speed up to 1.3GHz; Performance: 3065MIPS
· Memory:
— 256MB DDR1 SDRAM
— Flash: up to 16 Mbytes
· Interfaces:
— Four Gigabit Etherset ports
— Two PCI slots
— One PCI-Express slot
— One RS-232 port
· Other ports on MPC8548EPC
— COP interface
— 5V fan connector
— 3.3V and 5V power supplied from a carrier board
— Dimension: 147mm x 70.9mm
· Other ports on Type-N carrier
— 12V and 5V power supplied from 4-pin connector
— Dimension: 220mm x 148mm
Solution 2: MPC8548E development platform (MPC8548E processor card + Type-A carrier)
Model: MT8548E-A
Features
·
CPU:
Freescale MPC8548E, with frequency speed up to 1.3GHz; Performance: 3065MIPS
· Memory:
— 256MB DDR1 SDRAM
— Flash: up to 16 Mbytes
· Interfaces:
— Two Gigabit Etherset ports
— Two PCI slots
— PCI-Express and SRIO:
--PCI Express X8, or
--PCI Express X4 and SRIO X4
— One RS-232 port
· Other ports on MPC8548EPC
— COP interface
— 5V fan connector
— 3.3V and 5V power supplied from a carrier board
— Dimension: 147mm x 70.9mm
· Other ports on Type-N carrier
— 12V and 5V power supplied from 4-pin connector
— Dimension: 180mm x 74mm
Solution 3: UTCA8548E system (Including two sets of MT8548E-N and UTCA chassis)
Model: UTCA8548E

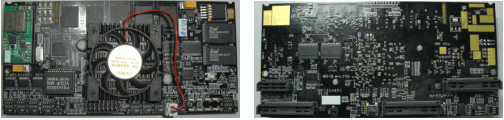

Pictures for MPC8548EPC
above bottom
MPC8548EPC_tarball in CD
(1)
Documentation
MPC8548EPC processor card User manual
quickstart_guide_MPC8548EPC+Type-N_v0.3 MPC8548EPC+Type-A
Type-N Type-A carrier Rev.C user manual
(2) Hardware
MPC8548EPC schematic
Type-N Rev.C schematic
Type-A Rev.A schematic
(3) Image
RAMDISK image
Linux-2.6.11
kernel image
Linux-2.6.15 kernel image
U-boot.bin for u-boot-1.1.4
(4)
Readme
(5)
Software
MPC8548ECDS_20060224-LTIB (including U-boot, RAMDISK file, Linux source
and PowerPC GCC compiler)
