MPC8572 development platform

(MPC8572 processor card + Type-N/A carrier)

             MPC8572PC+Type-N Carrier                                MPC8572PC + Type-A Carrier

Overview

To help the network equipment manufacturers simplify the system design and establish the Intelligent Network application, MICETEK provides a more quick and convenience solution of development board based on Freescale MPC8572 processor, which consists of a reusable MPC8572 processor card and two kinds of carriers for different applications. Combined with MPC8572PC, Type-N carrier can be used for Network Communication application, while Type-A for ATCA/MicroTCA chassis. It reduces the design cycle and saves the investment for the designer.

Advantages of Using the MPC8572PC

1 Flexibility

2 Shortening of the design cycle

3 Reusability

4 Ease of Debug

5 Standardized reference



Solution 1:  MPC8572 development platform  (MPC8572 processor card + Type-N carrier)

Application: Network communication application

Model: MT8572-N

Features:

  ·  CPU: Freescale PowerQUICC III MPC8572 dual-core processor with frequency speed up to 1333GHz;

         Performance: 6897MHz

  ·  Memory:

         — 512 DDR2

         — Up to 8MBytes NOR flash memory

         — Up to 32MBytes NAND flash memory

  · Interfaces:

        — Four Gigabit Etherset ports

        —  One PCI-Express slot

        — One RS-232 port

·  Other ports on MPC8572PC

  — COP interface

        — 5V fan connector

        — 3.3V and 5V power supplied from a carrier board

        — Dimension: 147mm x 70.9mm

·  Other ports on Type-N carrier

       — 12V and 5V power supplied from 4-pin connector

       — Dimension: 220mm x 148mm

Solution 2:  MPC8572 development platform  (MPC8572 processor card + Type-A carrier)

Application: AMC card for ATCA or MicroTCA system

Model: MT8572-A

Features:

  ·  CPU: Freescale PowerQUICC III MPC8572 dual-core processor with frequency speed up to 1333GHz;

         Performance: 6897MHz

  ·  Memory:

         — 512 DDR2

         — Up to 8MBytes NOR flash memory,

         — Up to 32MBytes NAND flash memory

·   Interfaces:

        — Two Gigabit Etherset ports

        — Two PCI slots

        —  PCI-Express and SRIO:

    --PCI Express X8, or

    --PCI Express X4 and SRIO X4

        — One RS-232 port

·  Other ports on MPC8572PC

  — COP interface

        — 5V fan connector

        — 3.3V and 5V power supplied from a carrier board

        — Dimension: 147mm x 70.9mm

·   Other ports on Type-N carrier

       — 12V and 5V power supplied from 4-pin connector

       — Dimension: 180mm x 74mm



Solution 3:  UTCA8572 system  (Including two sets of MT8572-N and UTCA chassis)

Application: ATCA or MicroTCA system

Model: UTCA8572

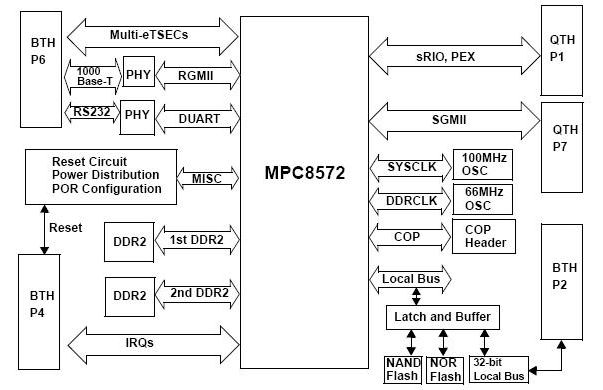

MPC8572PC block diagram

Solution

Type-N carrier board for Networking application

Type-A carrier card for ATCA and MicroTCA chassis

MPC8572PC_tarball in CD

(1)  Documentation

          MPC8572PC processor card User manual

          Type-N Type-A carrier Rev.C user manual

(2)  Hardware

          MPC8572PC schematic

          Type-N Rev.C schematic

          Type-A Rev.A schematic

(3)  Image

          RAMDISK image

          Linux-2.6.xx kernel image

          U-boot.bin for u-boot-1.1.x

(4)  Readme

(5)  Software

          LTIB (including U-boot, RAMDISK file, Linux source and PowerPC GCC compiler)

Related products

  USB TAP In-Circuit Emulator

  JediView for PowerPC IDE

Ordering information

Model

Products Description

Brand

Remark

MT8572-N

MPC8572 development platform with Type-N carrier

MICETEK



MT8572-A

MPC8572 development platform with Type-A carrier

MICETEK

Optional

MPC8572PC

MPC8572 processor card

MICETEK

Optional

USB TAP

USB TAP In-Circuit Emulator (for PowerPC)

MICETEK

Optional

JediView for PowerPC

JediView for PowerPC IDE

MICETEK

Optional

Document download

Flyer for PQ3 development board (processor card + carrier)

MPC8572PC user manual & data sheet

For more information, please feel free to send Email to us.
