MPC8313E-RDB reference design board
|
|
The MPC8313 reference platform (MPC8313E-RDB) is a system featuring the powerful PowerQUICC™ II Pro processor, which includes a built-in security accelerator. This low-cost, high-performance system solution consists of a printed circuit board (PCB) assembly known as the MPC8313E-RDB, plus a BSP, distributed in a CD image. MPC8313E-RDB includes Linux® 2.6 BSP with optimized drivers to support all peripherals. This BSP enables fastest possible time-to-market for development or integration of applications including printer engine, broadband gateways, no-new-wires home adapters/access points, and home automation box. |
Application
Printing and imaging, consumer, and industrial
applications, including main CPUs and I/O processors in printing systems,
networking switches and line cards, wireless LANs (WLANs), network access
servers (NAS), VPN routers, intelligent NIC, and industrial controllers.
MPC8313E
Processor
The PowerPC e300c3 core in the MPC8313E, with its 16
Kbytes of instruction and 16 Kbytes of data cache, implements the PowerPC user instruction
set architecture and provides hardware and software debugging support. In
addition, the MPC8313E offers dual three-speed 10/100/1000 Mbps Ethernet
controllers (eTSECs), a DDR-1/DDR-2 SDRAM memory controller, an enhanced local
bus controller (eLBC), a 32-bit PCI-2.3 controller, a dedicated security
engine, a programmable interrupt controller, dual I2C controllers, one 4-channel DMA controller, one
general-purpose I/O port, and one USB 2.0 host and device controller with an
on-chip high-speed USB 2.0 PHY. The high level of integration in the MPC8313E
helps simplify board design and offers significant bandwidth and performance.

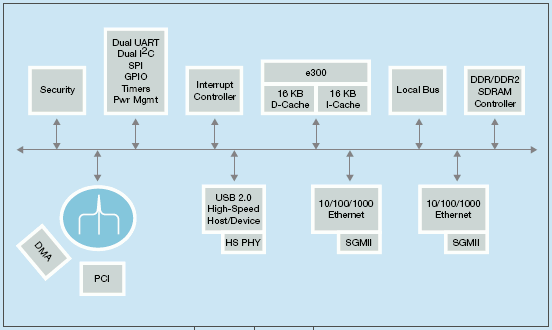

MPC8313E block diagram
Hardware of MPC8313E-RDB board
This section presents the features, specification, and
block diagram of the MPC8313E-RDB board. The features are as follows:
·
CPU: Freescale MPC8313E running at 333/133 MHz (CPU/CSB
(Coherent System Bus))
·
Memory subsystem:
—
128 MByte
unbuffered DDR2 SDRAM discrete devices
—
8 MByte Flash
single-chip memory
—
32 MByte NAND
Flash memory
—
256 KBit M24256
serial EEPROM
—
SD connector to
interface with the SD memory card in SPI mode
·
Interfaces:
—
10/100/1000
BaseT Ethernet ports:
–
eTSEC1, RGMII
interface: five 10/100/1000 BaseT RJ-45 interfaces using Vitesse™
VSC7385 L2 switch
– eTSEC2, selectable RGMII or SGMII interface: one 10/100/1000 BaseT RJ-45
interface using Mavell™ 88E1111 PHY
—
USB 2.0 port:
– High speed host/device USB interface: selectable on-chip PHY or external ULPI PHY
interface by SMSC USB3300
– USB PHY
—
PCI: 32-bit PCI
interface running at up to 66 MHz
–
One 32-bit 3.3 V
PCI slot connected to PCI bus
– One 32-bit 3.3 V
miniPCI slot connected to PCI bus
—
Dual UART ports:
–
DUART interface:
supports two UART up to 115200bps for console display
·
Board connectors:
—
LCD connectors
by GPIO
—
ATX power supply
connector
—
JTAG/COP for
debugging
·
IEEE1588 signals
for test and measurement
·
Real time clock
and thermal sensor on I2C bus
·
Programmable LEDs
for debug use
·
Mini-ITX form
factor: 6.7 inch × 6.7 inch excluding chassis
·
6-layer PCB
routing (4-layer signals, 2-layer power and ground)

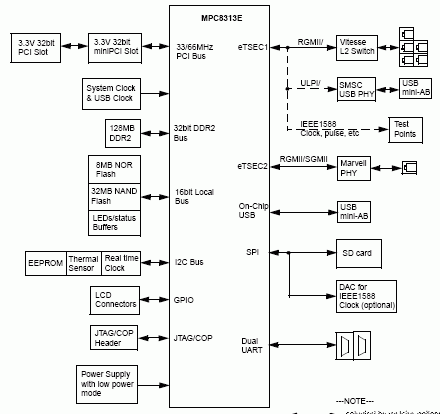

MPC8313E-RDB block diagram
Software of Platform
·
U-Boot
U-Boot
1.1.6
Enable
MPC8313E
Enhanced Local bus support
I2C bus
DDR2 32bit memory initialization
DUART
eTSEC1
and eTSEC2 as Ethernet and TFTP port
Flash
operation
Reset
command
Bootup
from NOR Flash
Enable
Cache and MMU in U-Boot
NAND
flash read/write
·
Linux kernel
Linux
kernel 2.6.19-rc6 supporting E300c3 core
DUART
support for console control
IPIC
support
JFFS2/NFS/ramdisk
filesystem deployment support
PCI host
working at 33MHz and 66MHz
MPC8313E
RDB eTSEC1 and eTSEC2 working as Ethernet ports
NAND flash working as MTD block
device
I2C bus
based RTC DS1339 support
CodeTEST
SWIC and HWIC code trace support
Linux
kernel debug for JediView
·
Ram Disk file system
glibc-2.3.6 dynamic libraries
Busybox
USB support (Host
mode only)
DHCP client (WAN) and DHCP server (LAN)
telnet server, boa webserver
·
Tool chain
gcc-3.4.3-glibc-2.3.3
for 8313e, binutils-2.15
MPC8313 Processor specification
|
MPC8313E
PROCESSOR HIGHLIGHTS |
||
|
|
MPC8313 |
MPC8313E |
|
Core |
e300c3,
2-IU, w/FPU, up to 333 MHz |
|
|
L1
I/D Cache (KB) |
16
KI/16 KD |
|
|
Memory
Controller |
16/32-bit
DDR2-333 |
|
|
Local
Bus Controller |
25b/8b
dedicated or 25b/16b mux Add/Data, |
|
|
PCI |
1
32-bit up to 66 MHz wake-on-PME |
|
|
Ethernet |
2
10/100/1000 MACs, SGMII, 98145.452 |
|
|
98145.452 |
1
high-speed USB 2.0 host/device+HS PHY, |
|
|
Security |
None |
SEC
2.2 |
|
UART |
Dual |
|
|
I2C |
Dual |
|
|
SPI |
1 |
|
|
Boot
options |
NOR,
NAND |
|
|
Int.
Controller |
PIC |
|
|
Mux/Dedicated
GPIO |
10/16 |
|
|
DMA |
4
channels |
|
|
Est.
Core Power |
~
2.4W |
|
|
Power
Management |
Standby
power <300 mW |
|
