MPC8349E-mITX-GP  cost-down reference platform

For Industry Application

　

MPC8349E-mITX-GP platform is a low cost reference board for Freescale MPC8349E PowerQUICC II Pro communication processor. Compared with MPC8349E-mITX, it provides the designer a simpler hardware board, software design document and developing tool and saves the investment by reducing some unnecessary interfaces for developer. And it’s easy and direct to software test and development for the designer on the board and it gives a reference design for the developer’s own hardware. It saves the time for early designing of the hardware and debugging and quick the products to market.

32-bit MPC8349E-mITX-GP has hardware encrypting, Ethernet Media MAC, USB Master/device and OTG supporting. This platform includes a GbEthernet interface, a high-speed USB interface, serial channel and PCI slot. All of those is integrated in a low cost mini-ITX board.

Application

·     Automation and robotics

·     Test and measurement

·     Process-manufacturing control

·     Aerospace

·     Building control

·     Health care

Hardware for board

·     CPU

      o     Freescale MPC8349E TBGA @ 266/533 (or 333/667) MHz

·     Memory system

      o     256-MByte (up to 1GByte) DDR1 DIMM SDRAM

      o     8-MByte Flash

      o     Compact Flash connector

·     Interface

      o     TSEC1, GMII interface:1x 10/100/1000M Ethernet interface，with Vitesse™ VSC8201

            single port 1000M PHY

      o     USB 2.0 high-speed (480Mbps，HUB and OTG):

        ◇     USB2, ULPI interface, connected one USB 2.0 mini-AB type port, with SMSC™

        ◇     USB3300 Hi-Speed USB host/device/OTG PHY

      o     PCI2 bus:32-bit PCI interface, 66MHZ

        ◇     1X32-bit，3.3V PCI Slot, connected PCI 2

      o     AtmelTM AT24C08 serial EEPROM

      o     1 RTC Dallas^TM DS1339 RTC with battery holder

      o     Freescale MC9S08QG8 MCU (20-MHz HCS08 CPU) for fan control and soft start

      o     Board Connectors

        ◇     Expansion Connectors

            ◆     16-bit Local Bus expansion connector, 9-bits addressing for external VoIP Module

            ◆     LCD interface using GPIO

        ◇     2个10 ATX Power supply connector

        ◇     RS-232C interface

            ◆     1 X 9 pin DB9

            ◆     1 X 10-pin 2.54 mm connector

        ◇     JTAG / COP debugging interface

·     Watchdog: MPC83xx with WATCHDOG

·     Form factor: Mini-ITX form factor (6.7 inch x 6.7inch)

·     6-layer PCB (4-layer signals, 2-layers power and ground) routing

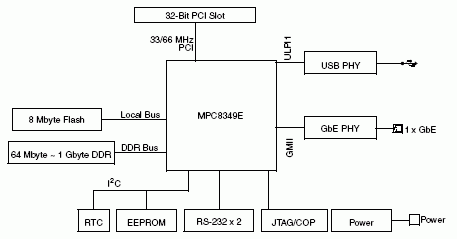

MPC8349E-mITX-GP block diagram

Software of board

·     Board Support Packages

·     Embedded Linux2.6x or 2.4 source code package

·     GNU, GDB tool chains

·     Uboot1.1/2/4

·     PCI, USB2.0, GbEthernet, 10/100 Ethernet drivers are available.

Packing list

No.	Item	Qty
1	MPC8349E-mITX-GP board	1 PC
2	Cable for Ethernet	1 PC
3	Cable for DB9 (male) to DB9 (female), RS232 cable	1 PC
4	128M DDR1 DIMM SDRAM	1 PC
5	ATX Power Supply and MITX enclosure	1 PC
6	CD, MPC8349E-mITXE BSP and Documentation	1 PC

Ordering information

Model	Description	Brand	Remark
MPC8349E-mITX-GP	MPC8349E cost-down reference platform	MICETEK
USB TAP	USB TAP In-circuit Emulator (for PowerPC)	MICETEK	Optional
JediView for PowerPC	JediView for PowerPC IDE	MICETEK	Optional

For more information, please feel free to send Email to us.
