Arm Development Studio 5 (DS-5)


Arm® Development Studio 5(DS-5™)
The reference software development tool suite for Arm processors Developed by Arm Architecture experts, the Arm DS-5™ toolchain enables engineers to develop robust and highly optimized embedded software for Arm application processors, such as the Cortex™-A series, Cortex-R real-time processors and other Arm embedded processors. The DS-5™ toolchain comprises tools such as the best-in-class Arm C/C++ Compiler, a powerful Linux/Android™/RTOS-aware debugger, the ARM Streamline™ system-wide performance analyzer and real-time system model simulators, all conveniently packaged in a user friendly integrated development environment (IDE) based on the Eclipse.
http://www.arm.com/products/tools/software-tools/ds-5/index

  • DS-5 Editions Quick Reference
Feature Community Professional Ultimate
Eclipse IDE Yes Yes Yes
Arm Compilers No Arm Compiler 5 Arm Compiler 5 & ARM Compiler 6
Linaro GCC Yes Yes Yes
DS-5 Debugger Linux and Android
gdbserver debug
Bare-metal, RTOS, Linux kernel &
application debug up to ARMv7
Bare-metal, RTOS, Linux kernel &
application debug up to ARMv8
CoreSight Trace
(ETM, PTM, ITM, STM)
No Yes Yes

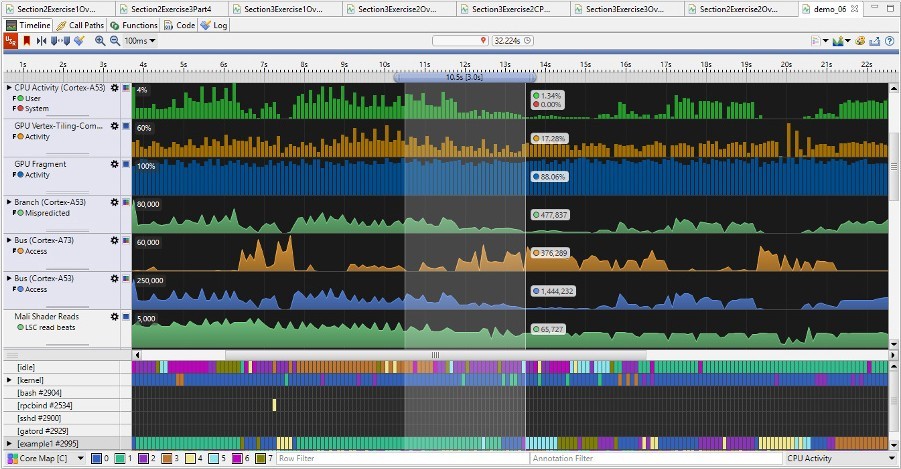

Streamline Performance Analyzer Limited subset of
hardware & software counters
Full profiling of architecture
versions up to and
including ARMv7
Full profiling of architecture
versions up to and
including ARMv8
Simulation with Fixed Virtual Platform (FVP) No Cortex-A9 FVP Cortex-A9 & ARMv8 FVP
Processor Support   Up to ARMv7 Including ARMv8

To see a detailed table of features, visit our Compare DS-5 Editions page

  • DS-5 comes in three different editions, which are license-managed from a single installation.

DS-5 Ultimate Edition supports the very latest ARM processors and technology, such as ARMv8.Download it here
DS-5 Professional Edition supports all ARM processors up to and including ARMv7, providing exceptional debug and trace capabilities as well as access to ARM Compilers.
DS-5 Community Edition is free, allowing access to a limited feature set of Streamline and DS-5 Debugger, enabling Android and Linux application debug.



RVDS Toolchain
The Arm® RVDS™ 4.1 toolchain is the legacy solution for software development on older ARM processors. RVDS 4.1 is available in Standard and Professional Editions.
http://www.arm.com/products/tools/software-tools/rvds/index


DSTREAM High-Performance Debug and Trace
The DSTREAM™ high-performance debug and trace unit enables software debug and optimization on any Arm processor-based hardware target. DSTREAM extends the functionality of RVI and RVT2 with faster memory download and trace capture, as well as wider support for physical debug and trace interfaces.

DSTREAM™ enables the connection of DS-5 Debugger, RVD and third party debuggers to Arm-based devices via JTAG or Serial-Wire Debug. DSTREAM™ uses FPGA acceleration to deliver high download speeds and fast stepping through code on single and multi-processor devices.
http://www.arm.com/products/tools/debug-adapters/index

High-bandwidth Trace
Trace is an essential tool for the resolution of complex software/hardware and timing-related issues, as it enables post-analysis of a software execution without the need for any software or hardware instrumentation.

The 4 GB trace buffer on DSTREAM enables high-bandwidth trace for long periods, providing further visibility of how the software executes on the target
.
Trace can either be collected using the default parallel trace probe supplied with DSTREAM, or alternatively, using the High Speed Serial Trace Probe (HSSTP), available separately. This allows for high bandwidth serial trace capture of up to 20 Gbps from ARM HSSTP or Marvell® SETM.

Models
The ARM tools range provides early access to a Virtual Platform for accelerated software development:

  • Fast Models are validated by ARM for functional accuracy
  • The RTSM simulator in DS-5 enables Linux application development
  • µVision IDE offers a debugger and simulation environment for microcontrollers

Fast Models are available for the following Arm Processors and System Controllers, plus many standard components to complete your virtual platform:

Classic Processors:


http://www.arm.com/products/tools/models/
