MPC8347E Development Board
(MPC8347E processor card + Type-N/S carrier)
Overview
The MPC8347E Processor Card
(MPC8347EPC) serves as a development platform with processor element and minimum
system requirements. The MPC8347EPC is designed to work with a carrier board.
With external debugger connected, developer is able to incorporate their desired
systems with the PowerQUICC II™ Pro
processors.
The MPC8347E PowerQUICC II™ Pro family of integrated communications processors is a next-generation extension of the popular PowerQUICC II line. Based on a system-on-chip (SoC) architecture, the MPC8347E PowerQUICC II Pro Family integrates the enhanced e300 core and advanced features, such as DDR memory, Dual Gigabit Ethernet, Dual PCI and Hi-Speed USB controllers. With clock speeds scaling to 667 MHz, the MPC8349E family of processors offers the highest performing PowerQUICC II devices available.
Applications
The MPC8347E
PowerQUICC II Pro Family is designed to provide a cost-effective, highly
integrated control processing solution that addresses the emerging needs of
networking, communications and pervasive computing applications. MPC8347E
processors can be used in applications such as Ethernet routers and switches,
wireless LAN (WLAN) equipment, network storage, home network appliances,
industrial control equipment, and copiers, printers and other imaging systems.
PowerPC II Pro
Feature
e300 core
operating from 266 MHz up to 667 MHz (enhanced version of 603e core with larger
caches)
· 32-bit, high-performance
superscalar core
· 1260 MIPS @ 667 MHz
· Double-precision floating
point, integer, load/store, system register, and branch processor units
· 32 KB data and 32 KB
instruction cache with line locking support
· One PCI interface
· Dual 10/100/1000 Ethernet
controllers
· Embedded security engine
· Dual Hi-Speed USB
controllers
· Local bus controller
·
Dual UART (DUART)
·
Dual I2C
interfaces (master or slave mode)
·
Four-channel DMA
controller
·
Serial peripheral
interface (SPI)
·
General-purpose parallel
I/O (GPIO)
·
IEEE 1149.1 JTAG test
access port
·
Package: 672-pin, 35 mm x
35 mm TBGA (1 mm pitch)
·
Process technology: 130
nm CMOS
· Voltage: 1.2V core voltage with 3.3V and 2.5V I/O

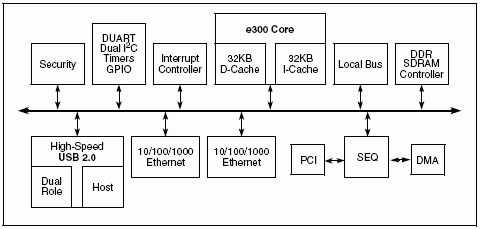

MPC8347E processor block diagram
Hardware of MPC8347EPC
· MPC8347/E running at 400MHz
· Support 32-bit PCI interface up to 66 Mhz
· DDR266 SDRAM supported by discrete DDR SDRAM with optional
ECC feature
· Up to 16 MBytes flash memory at 16-bit port size in two
banks
· One 10/100/1000 BaseT copper interface using TSEC1 GMII
mode.
· Two USB 2.0 ports using ULPI interface. One of the port
support OTG.
· One RS-232 Serial Port
· COP interface
· Other interfaces supported by board-to-board connectors:
— TSEC2
GMII, RGMII, TBI, RTBI interfaces supported by board-to-board connector, which
can be used as 10/100/1000 BaseT copper interface on a carrier board.
— 32-bit
Local Bus interface with four chip-selects and 24-bit address
· 3.3V and 5V power supplied from a carrier board

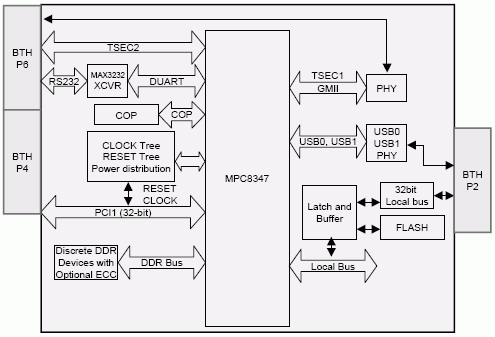

MPC8347EPC block diagram
Picture of MPC8347EPC
 |
 |
| above | bottom |
Solution
◆ Type-N carrier board
+ MPC8347EPC for Networking application

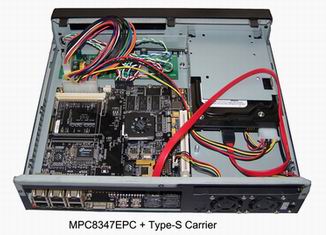

◆ Type-S carrier board + MPC8347EPC for Storage application

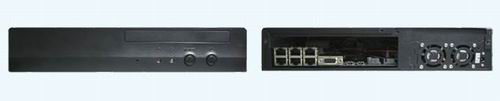

View product image
Packing list
|
No. |
Description |
Q’ty |
|
1 |
MPC8347E processor card |
1PC |
|
2 |
Cable for Ethernet |
1PC |
|
3 |
Cable for USB |
1PC |
|
4 |
Cable for RS-232 |
1PC |
|
5 |
Power
adapter |
1PC |
|
6 |
CD |
1PC |
Software for
MPC8347EPC:
(1) Document:
MPC8347EPC
User Manual
Type-N
carrier User Manual
(2) Hardware:
MPC8347EPC
schematic
Type-N
carrier schematic
(3) Software:
MPC8347EPC
including:
1) Board Support Packages
2) Embedded Linux2.6x or 2.4 source code
package
3) Uboot1.1/2/4
4) GNU, GDB tool chains
5)
PCI, USB2.0, GbEthernet, 10/100
Ethernet drivers
6) JediView for PowerPC
V0.75 for evaluation
Ordering information
|
Model |
Description
|
Brand |
Remark |
|
MPC8347EPC |
MPC8347E development board |
MICETEK |
|
|
PQCBN |
Type-N carrier supporting PQ II Pro,
III processor card |
MICETEK |
Optional |
|
PQCBS |
Type-S carrier supporting PQ II Pro,
III processor card |
MICETEK |
Optional |
|
USB TAP In-circuit Emulator (for
PowerPC) |
MICETEK |
Optional |
|
|
JediView for PowerPC IDE |
MICETEK |
Optional |
Document download
MPC8347EPC & Type-S user manual & data sheet
For more information, please feel free to send Email to us.
