MT8XXX-S development platform

With Type-S carrier for the storage application



Overview

The Type-S Carrier serves as a generic I/O platform for PowerQUICC II Pro and III family processor cards. It provides standard connectors such as one PCI and one mini-PCI slots, SATA port, mini-USB ports, gigabit Ethernet connector for testing and developing the functionality of different interfaces of MPC83xx and MPC85XX devices. Combined with reusable PowerPC processor card, Type-S carrier can be used for storage application.

Application

NAS systems, developed using the Freescale reference design and Media Server software, are designed to enable consumers to share and store multimedia files, such as video, DVD backups, music and photos, throughout the digital home. Mediabolic software makes it easy to centrally manage and distribute digital content among multiple PCs and networked entertainment devices.

Features

· PCI slot :

      — One PCI slot

      — Two mini PCI slots (3.3V only)

· SATA port : Four

· Ethernet port :

      — One 10/100/1000 Ethernet port,

      — One four-port 10/100 Ethernet switch

· USB 2.0 port: Two (for MPC8347E only)

· RS-232 : One

· General information

      — 6-layer PCB,

      — RTC,

      — EEPROM

· Dimension: 6.7 inch x 6.7 inch

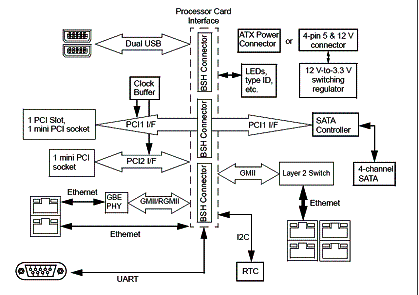

Type-S carrier board block diagram

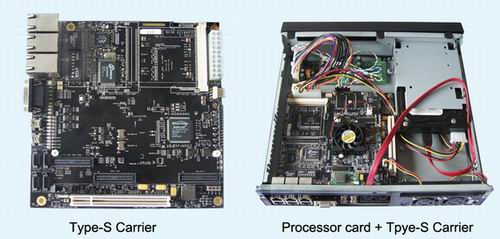

View enclosure image

front back

Target Supported

MPC8541EPC/MPC8560PC

MPC8347EPC

Ordering information

Model

Products Description

Brand

Remark

MT8XXX-S

MPC83XX/85XX development platform with Type-S carrier

MICETEK



USB TAP

USB TAP In-Circuit Emulator for PowerPC

MICETEK

Optional

JediView for PowerPC

JediView for PowerPC IDE

MICETEK

Optional

Document download

Flyer for PQ3 development board (processor card + carrier)

Type-N/S/A carrier User Manual & Data Sheet

For more information, please feel free to send Email to us.
