MPC8347 Reference Platform

The mini module with Freescale PowerPC MPC8347E processor, up to 256MB DDR1 up to 16M Flash, 147 x 70.9 mm²

Overview

The MPC8347 Processor Card serves as a development platform with processor element and minimum system requirements. The MPC8347EPC is designed to work with a carrier board. With external debugger connected, developer is able to incorporate their desired systems with the PowerQUICC II Pro processors.

Applications

The MPC8347E PowerQUICC II Pro Family is designed to provide a cost-effective, highly integrated control processing solution that addresses the emerging needs of networking, communications and pervasive computing applications. MPC8347E processors can be used in applications such as Ethernet routers and switches, wireless LAN (WLAN) equipment, network storage, home network appliances, industrial control equipment, and copiers, printers and other imaging systems.



MPC8347EPC features:

· CPU: Freescale MPC8347/E with frequency speed up to 400MHz

·   Memory: 256MB DDR1 SDRAM

· Flash: Up to 16 MBytes flash memory at 16-bit port size in two banks

· Ethernet:

    One 10/100/1000 BaseT copper interface using TSEC1 GMII mode,

One 10/100/1000 BaseT copper interface using TSEC2 GMII, RGMII, TBI, RTBI interfaces

· USB 2.0: Two

· PCI: Support 32-bit PCI interface up to 66 Mhz

· RS-232: One RS-232 Serial Port

· COP interface

· 32-bit Local Bus interface with four chip-selects and 24-bit address

· 3.3V and 5V power supplied from a carrier board

· 6-layer PCB routing

    · Dimension: 5.79 inch x 2.79 inch

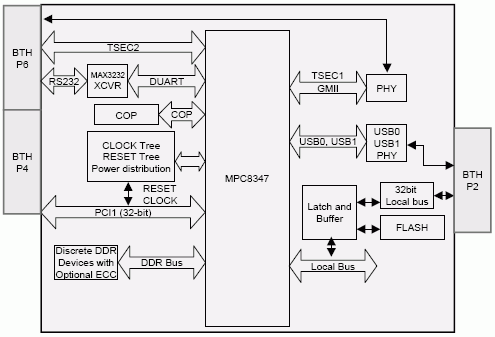

MPC8347EPC block diagram

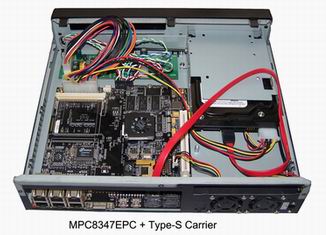

Picture of MPC8347EPC

above bottom

Solution

Type-N carrier board + MPC8347EPC  for Networking application

Type-S carrier board + MPC8347EPC for Storage application

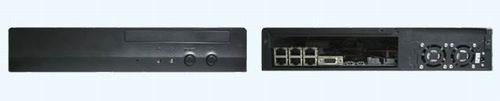

View product image

Packing list

No.

Description

Q’ty

1

MPC8347E processor card

1PC

2

Cable for Ethernet

1PC

3

Cable for USB

1PC

4

Cable for RS-232

1PC

5

Power adapter

1PC

6

CD

1PC

Software for MPC8347EPC

(1) Document:

MPC8347EPC User Manual

Type-N carrier User Manual

            Type-S carrier User Manual

(2) Hardware:

MPC8347EPC schematic

Type-N carrier schematic

            Type-S carrier schematic

(3) Software:

MPC8347EPC including:

1) Board Support Packages

2) Embedded Linux2.6x or 2.4 source code package

3) Uboot1.1/2/4

4) GNU, GDB tool chains

5) PCI, USB2.0, 10/100/1000 Ethernet, 10/100 Ethernet drivers

6) JediView for PowerPC for evaluation

Ordering information

Model

Description

Brand

Remark

MPC8347EPC

MPC8347E processor card

MICETEK



MT8347E-N

MPC8347E development platform with Type-N carrier

MICETEK

Optional

MT8347E-S

MPC8347E development platform with Type-S carrier

MICETEK

Optional

USB TAP

USB TAP In-circuit Emulator for PowerPC

MICETEK

Optional

JediView for PowerPC

JediView for PowerPC IDE

MICETEK

Optional
