T1024 silicon feature

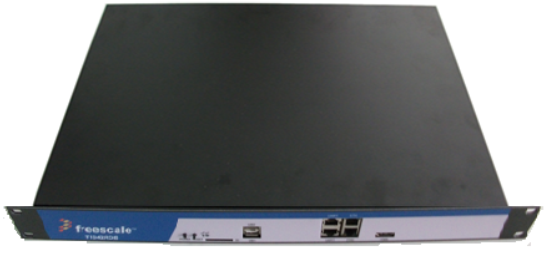

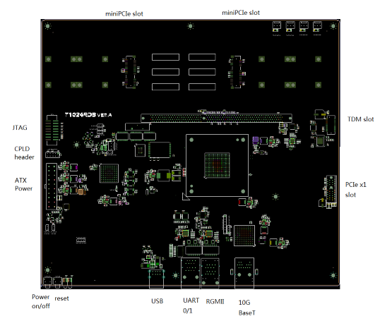

T1024RDB feature

2 e5500 core (256KB L2 cache, 256KB L3 coreNet cache), up to 1.4Gz

1400Mhz

32/64-bit DDR3L/4 SDRAM with ECC & interleaving

72-bit, 4G DDR3L UDIMM, 1600MT/s

Two 1Gbps RGMII Ethernet controller

Three up to 2.5Gbps SGMII Ethernet interface

One 10Gbps XFI/10Base-KR Interface

One QSGMII interfacae

two 1G RGMII port

one 10G baseT port

Three PCIe 2.0 controller, up to x2

1 PCIe x1 slot, 2 miniPCIe slot

One SATA controller

Two high-speed USB2.0

SD/SDXC/eMMC controller

eSPI interface

Four I2C controller

Two UART

IFC support NAND & NOR flash

QUICC Engine/TDM/HDLC interface

DIU controller

2 USB interface

1 SD card slot

1 SPI Flash

2 I2C bus

2 UART interfaces

16-bit NOR flash (256MB)/ 8-bit NAND flash(1024MB)

TDM riser slot
